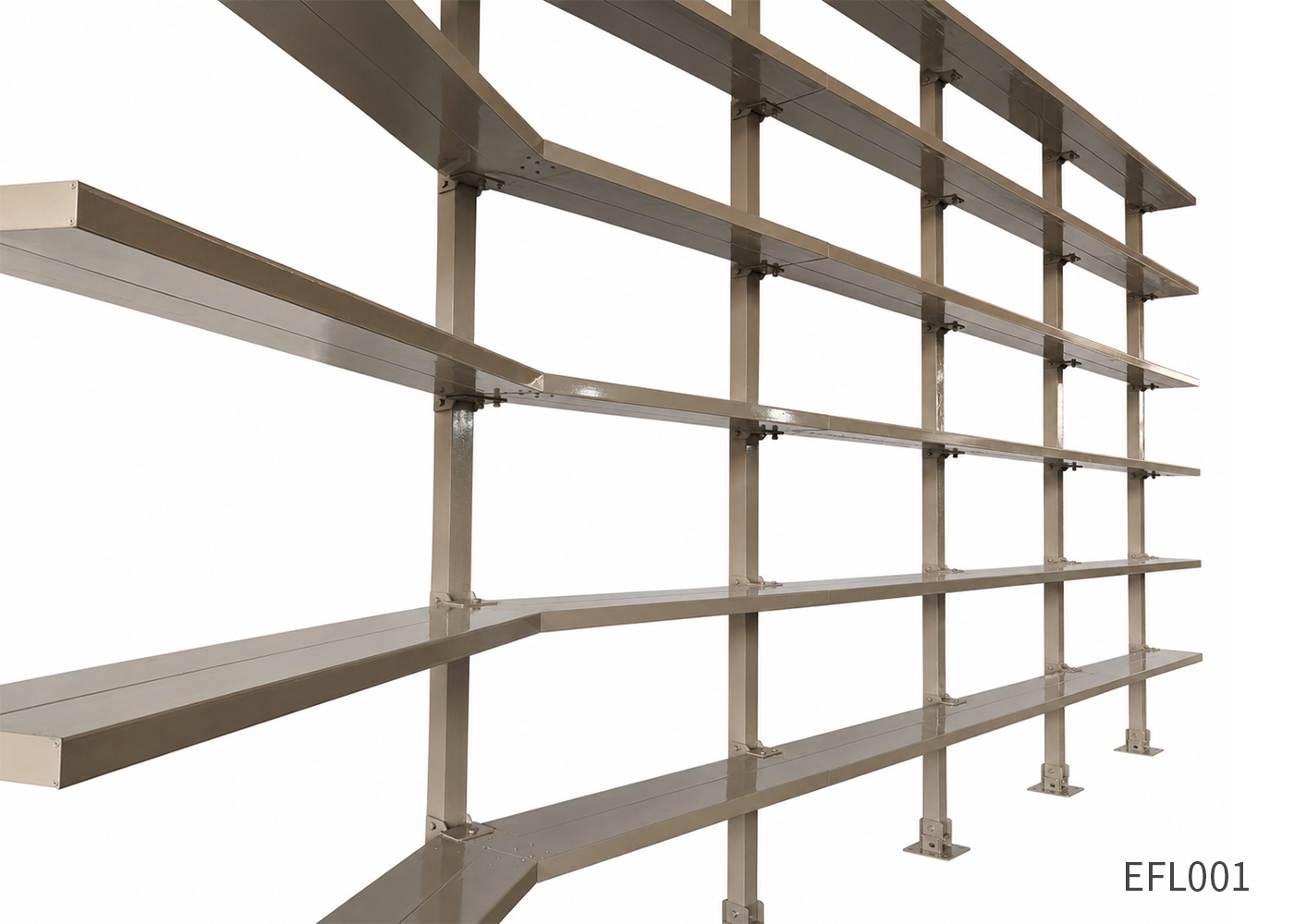

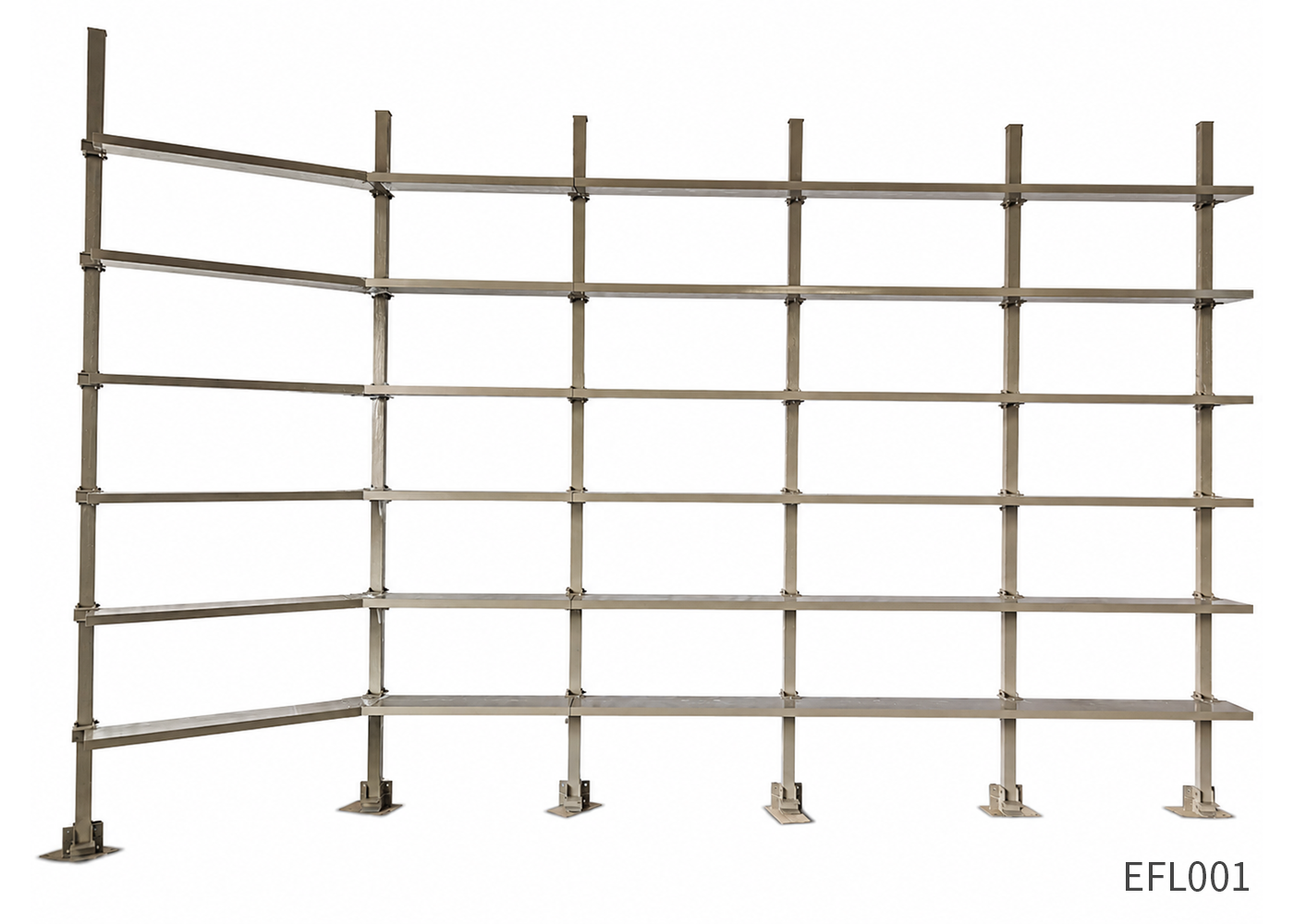

EXTERIOR FIXED ARCHITECTURAL LOUVER SYSTEM

No.EFL001

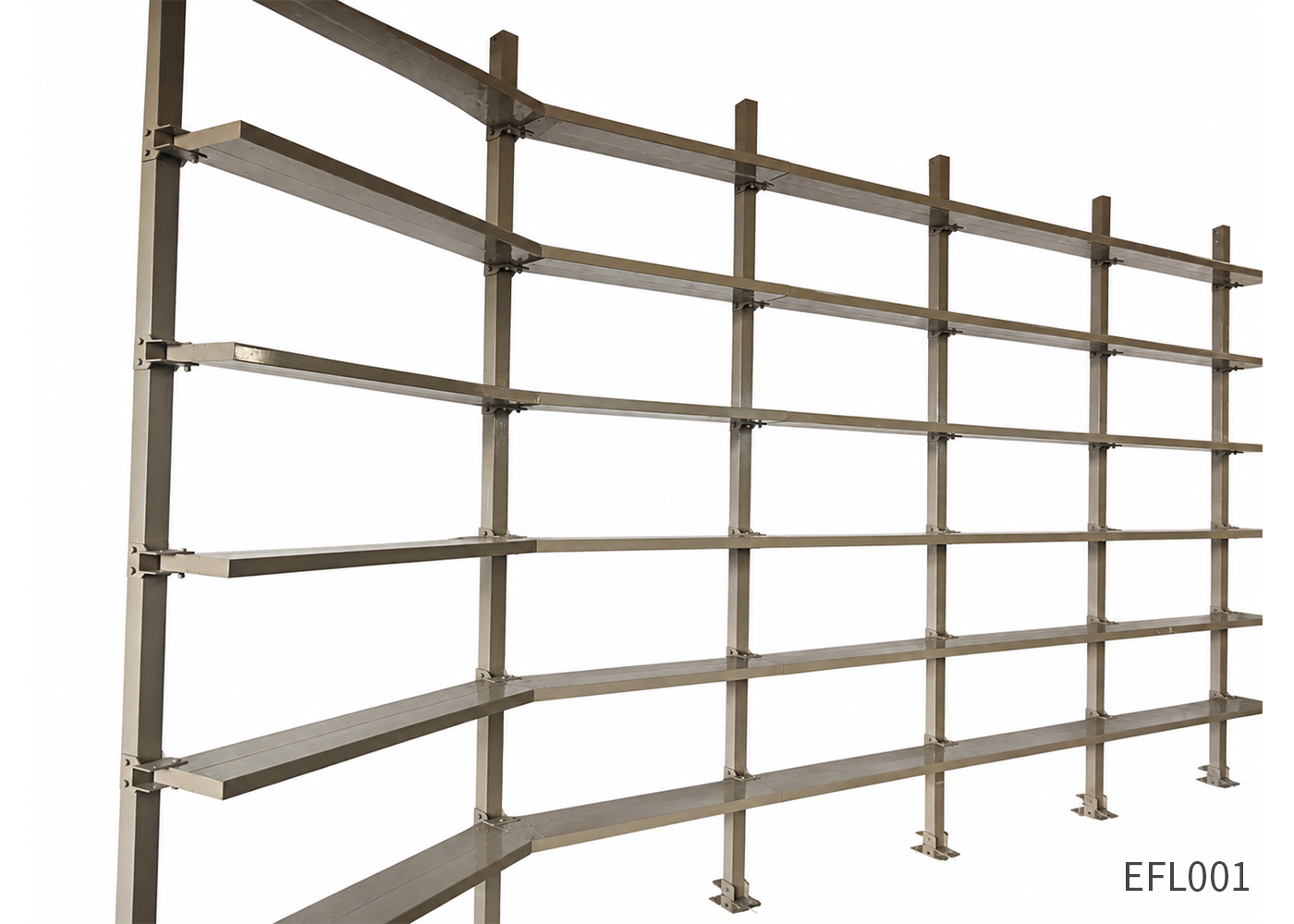

A custom exterior fixed architectural louver system designed for facade decoration, sun shading and ventilation. Available in customized sizes, colors and finishes to meet different project requirements.
GET A QUOTE
Add to Quote List View Quote List
Description
Product Specifications
Aluminum Horizontal Sunshade
A custom-engineered aluminum sunshade system developed for architectural façade applications, with full-scale factory trial assembly and detailed connection inspection completed before delivery.
Item Specification
Overall Size 12049 × 300 × 50 mm
Material Aluminum
Sunshade Profile 300 × 50 mm
Surface Finish Powder Coated
Color Sensational Champagne
Installation Aluminum Bracket & Bolt Fixing
01
Engineering Design
Project elevation, system dimensions and fixing structure developed before production.

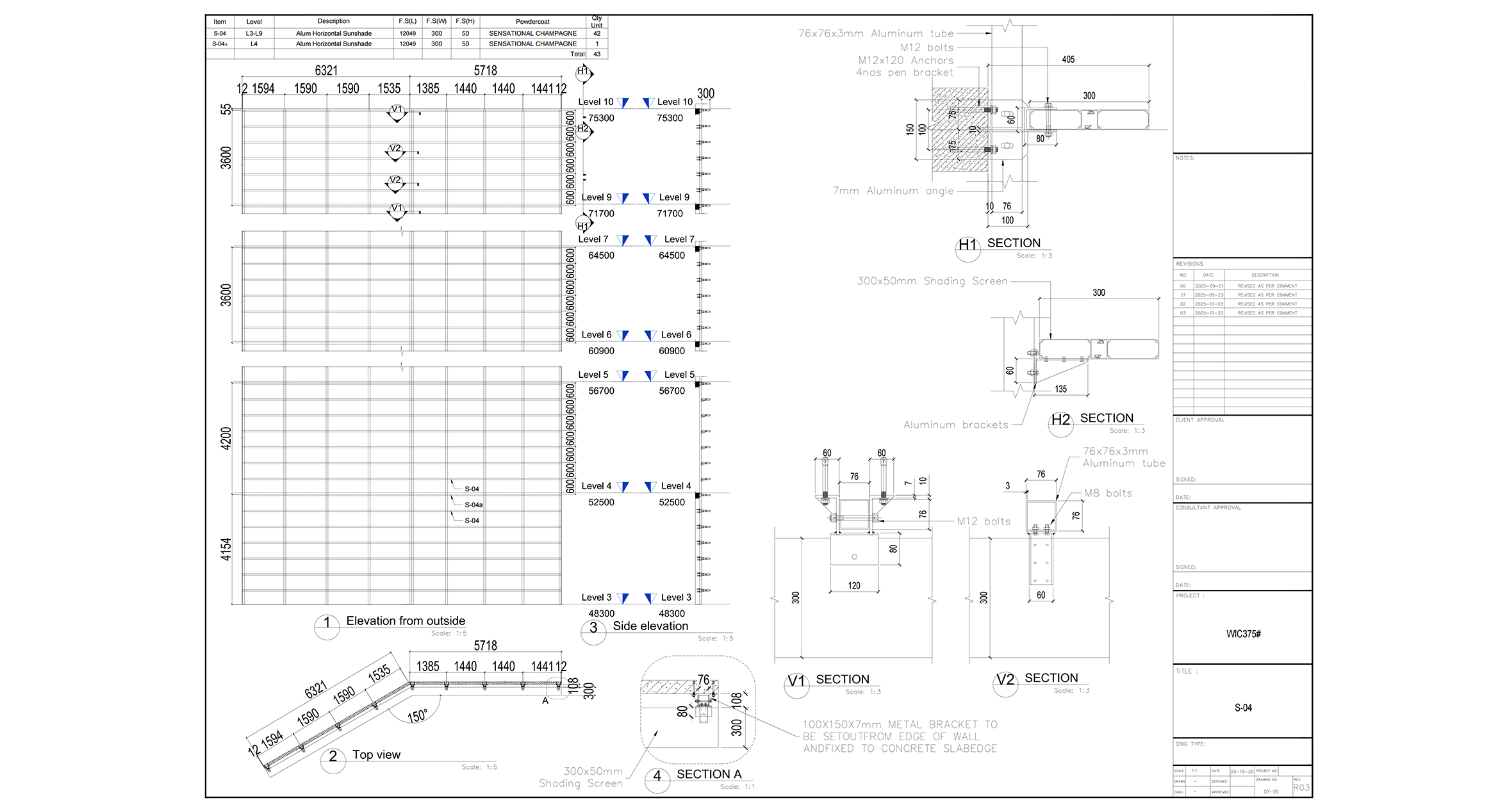

Aluminum sunshade engineering elevation and connection details
Project Elevation & Connection Details
02
Factory Trial Assembly
Front and perspective views of the completed full-scale trial assembly.

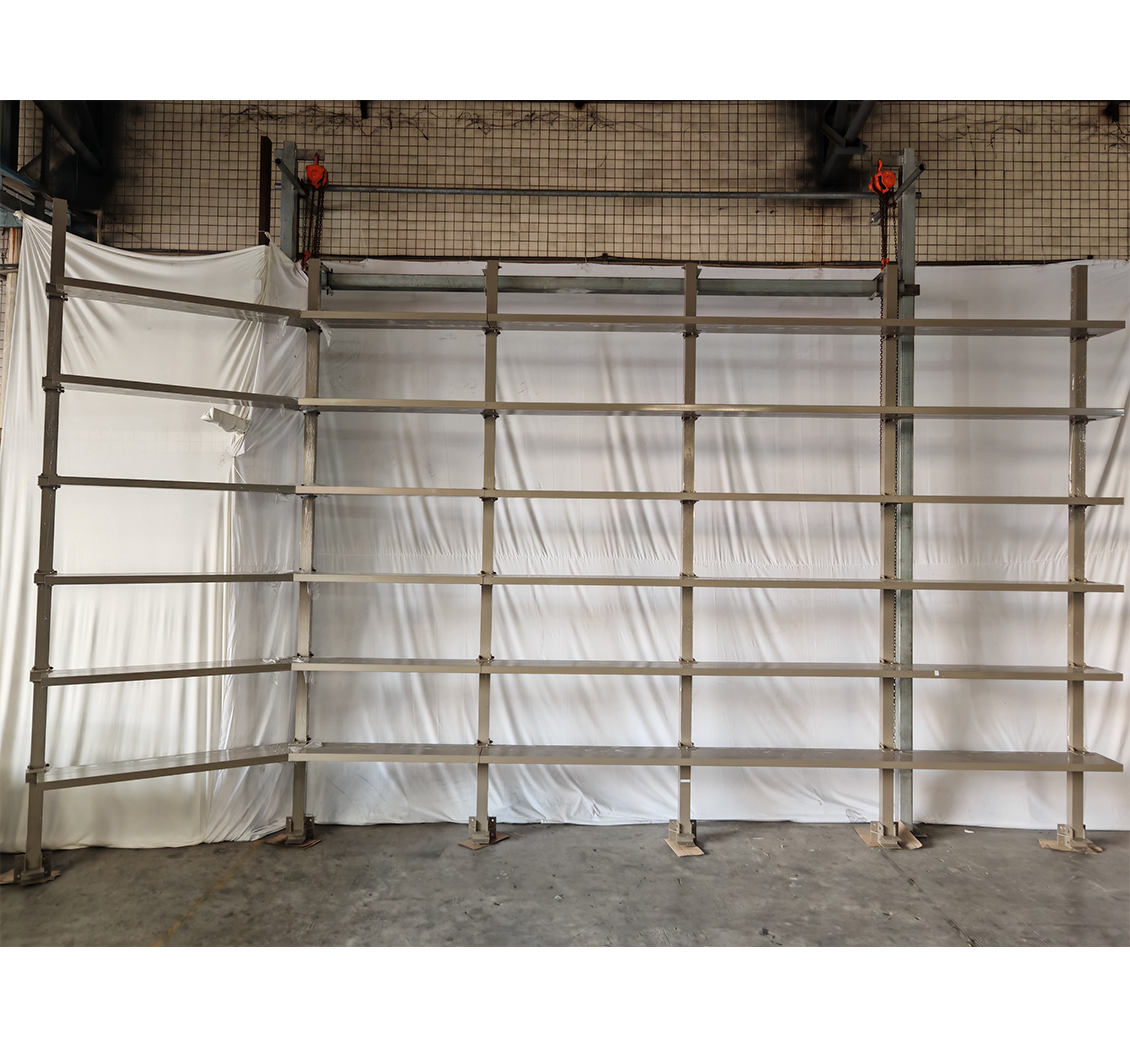

Factory trial assembly front view
Trial Assembly — Front View

Factory trial assembly perspective view

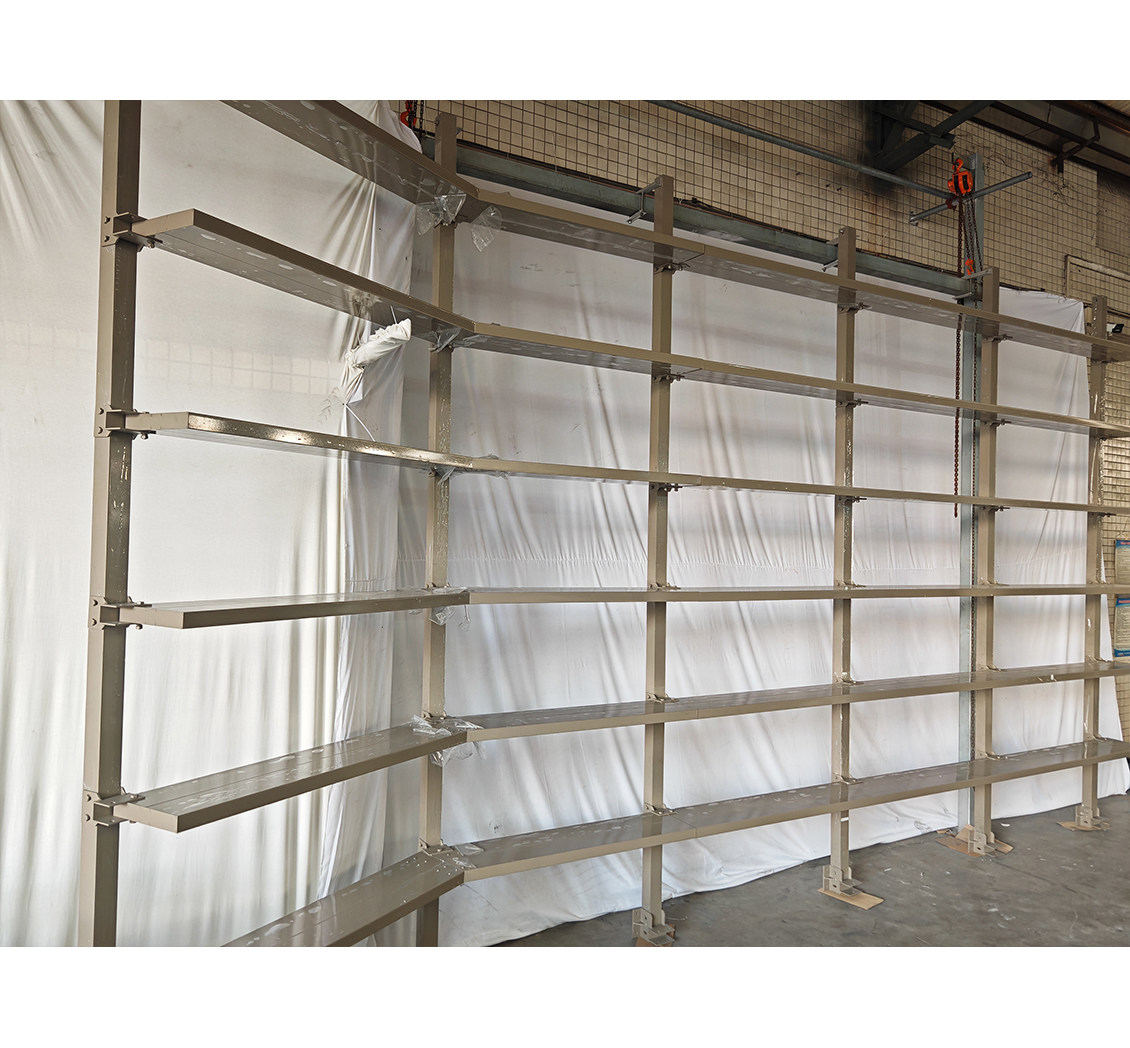

Trial Assembly — Perspective View
03
Actual Connection Positions
Different viewing positions show the corner transition, module joint and louver-to-post fixing.

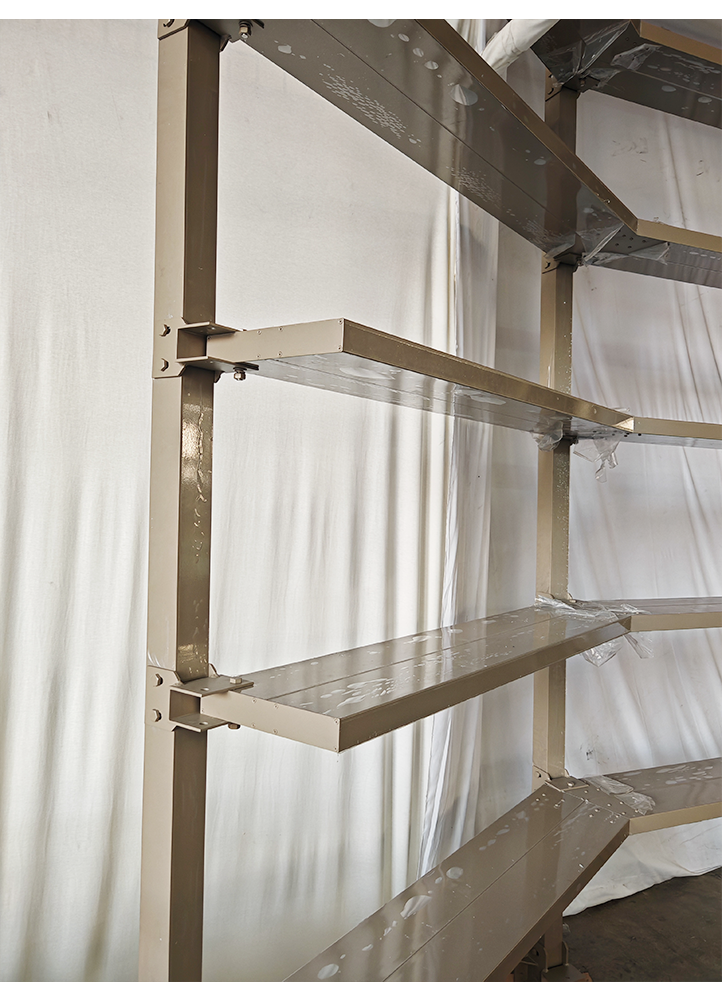

Corner transition connection position
Corner Transition

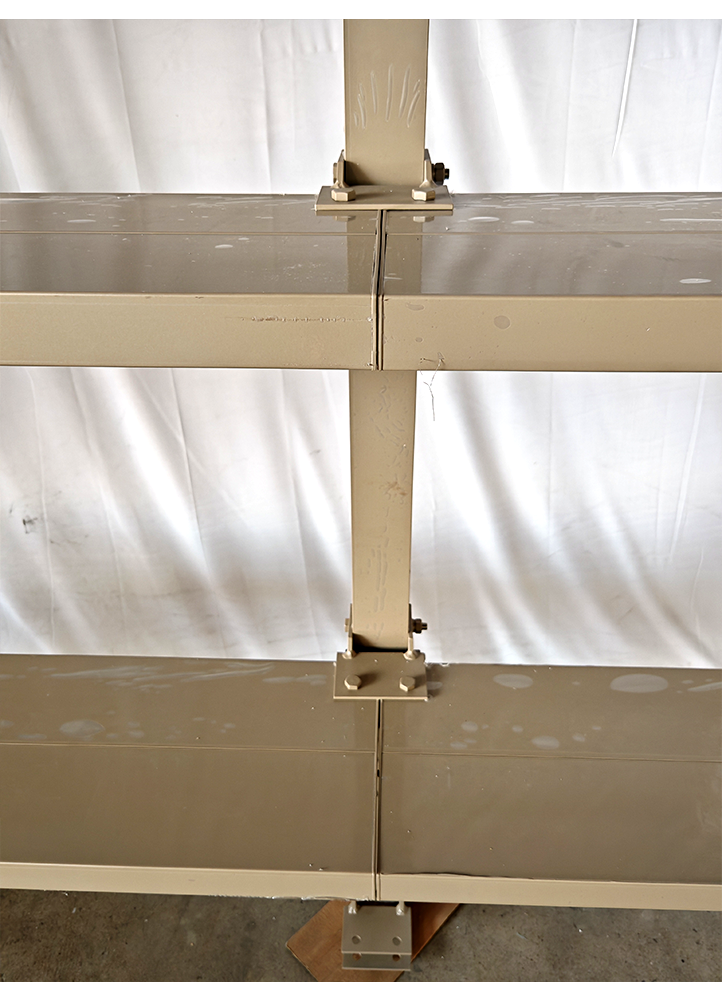

Intermediate module joint position
Intermediate Module Joint

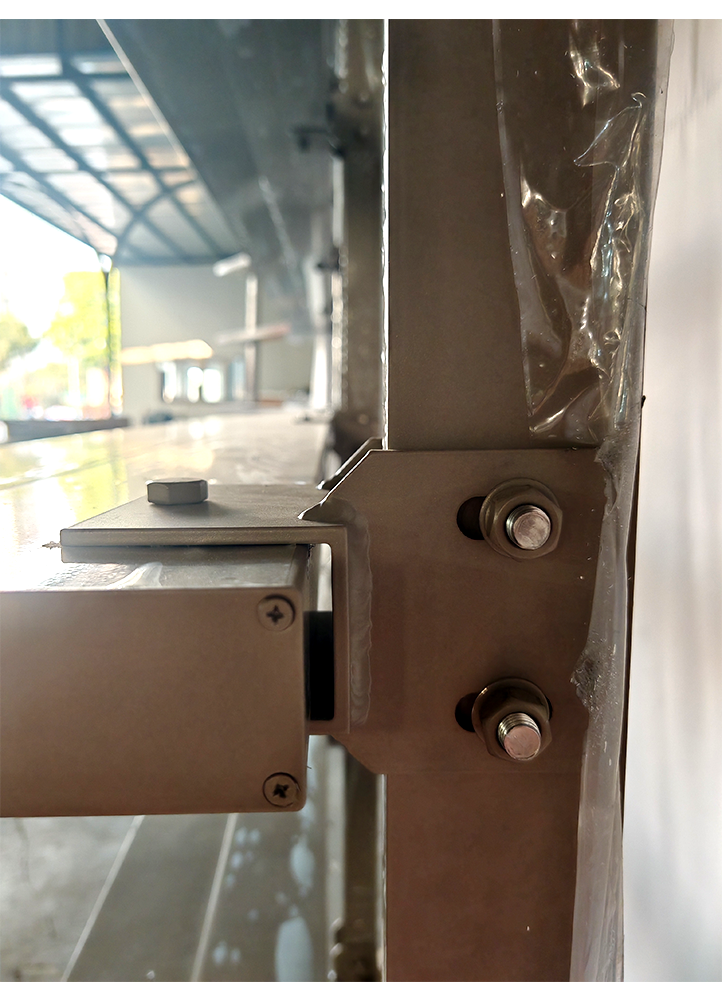

Louver-to-post connection position
Louver-to-Post Connection
04
Connector Detail Inspection
Close-up views verify connector plates, bolt positions and the completed bolted assembly.

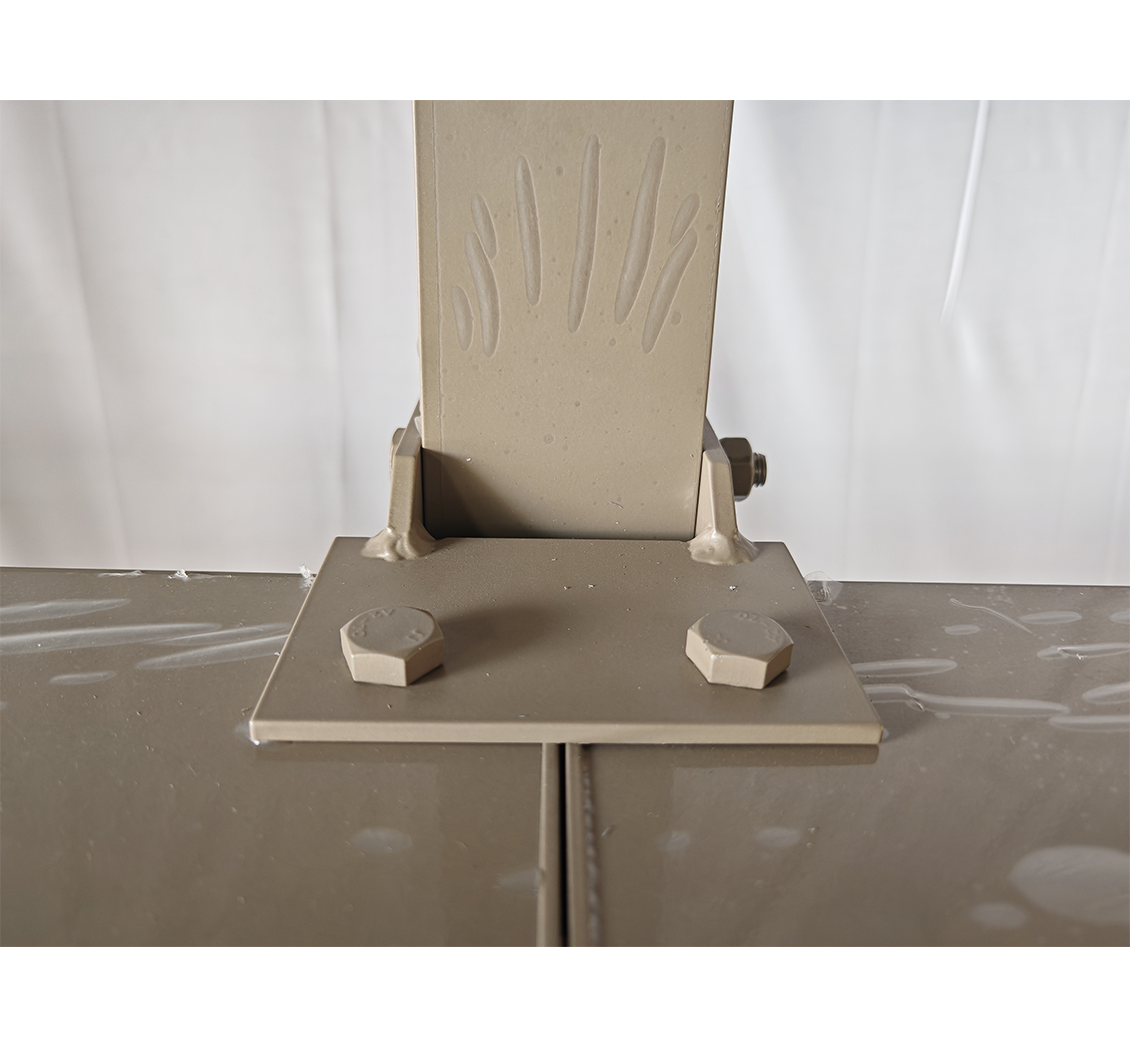

Connector plate and bolted support
Connector Plate & Bolted Support
Connector assembly close-up

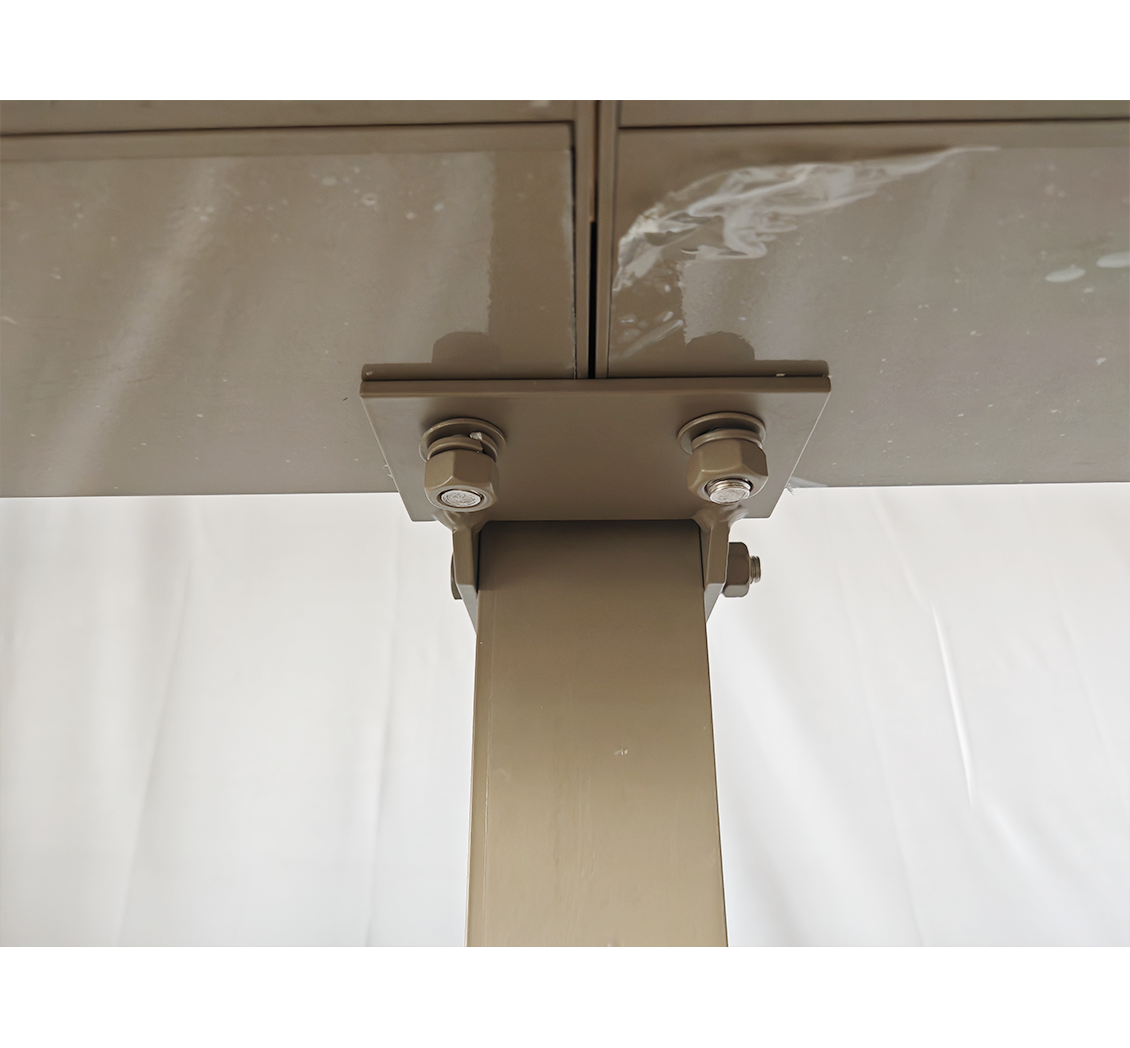

Connector Assembly Close-Up
05
Post Installation Details
Post-mounted supports and base fixing are shown separately for clear installation reference.

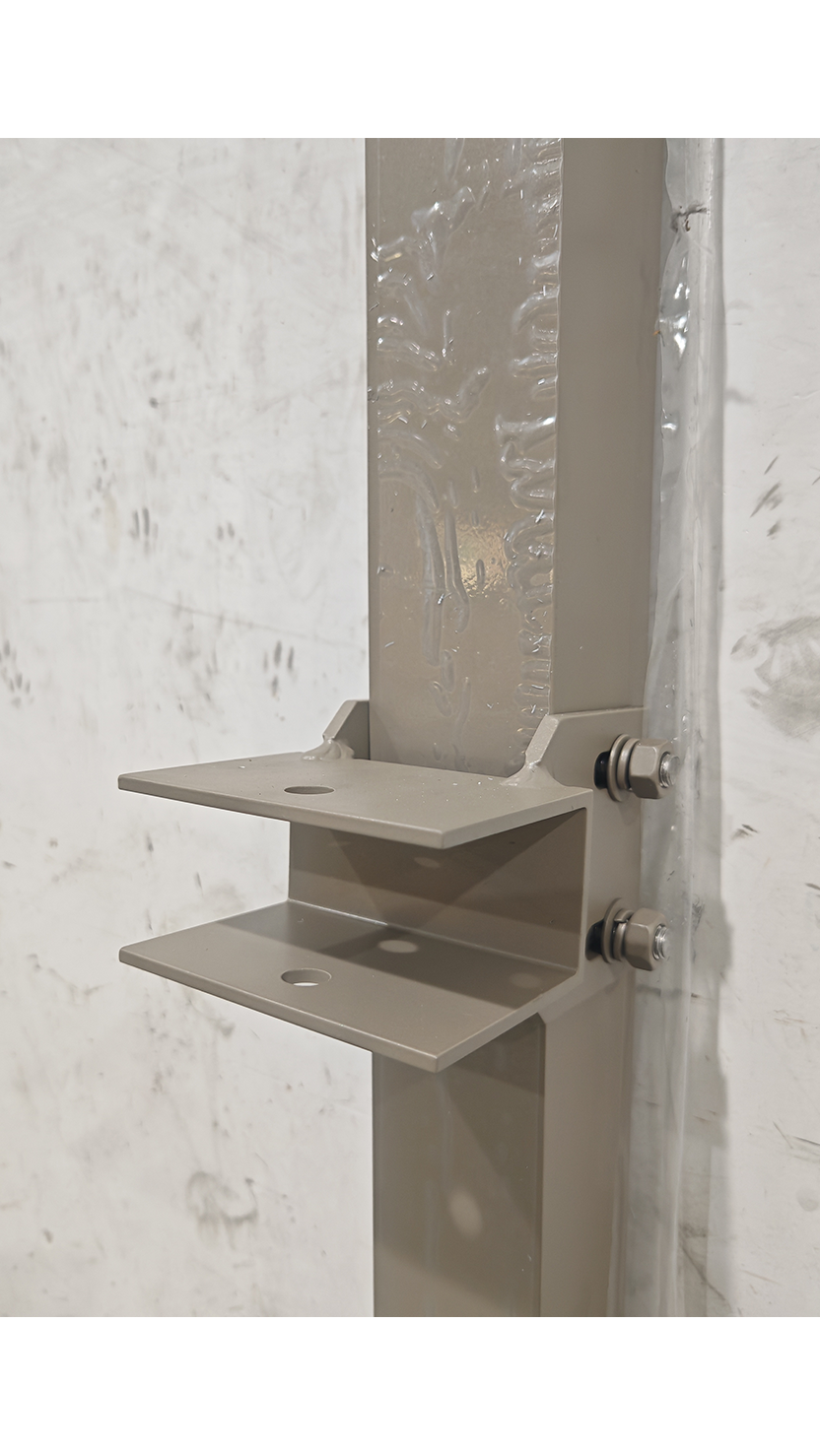

Post-mounted bracket detail
Post-Mounted Bracket
Post base plate and floor fixing detail

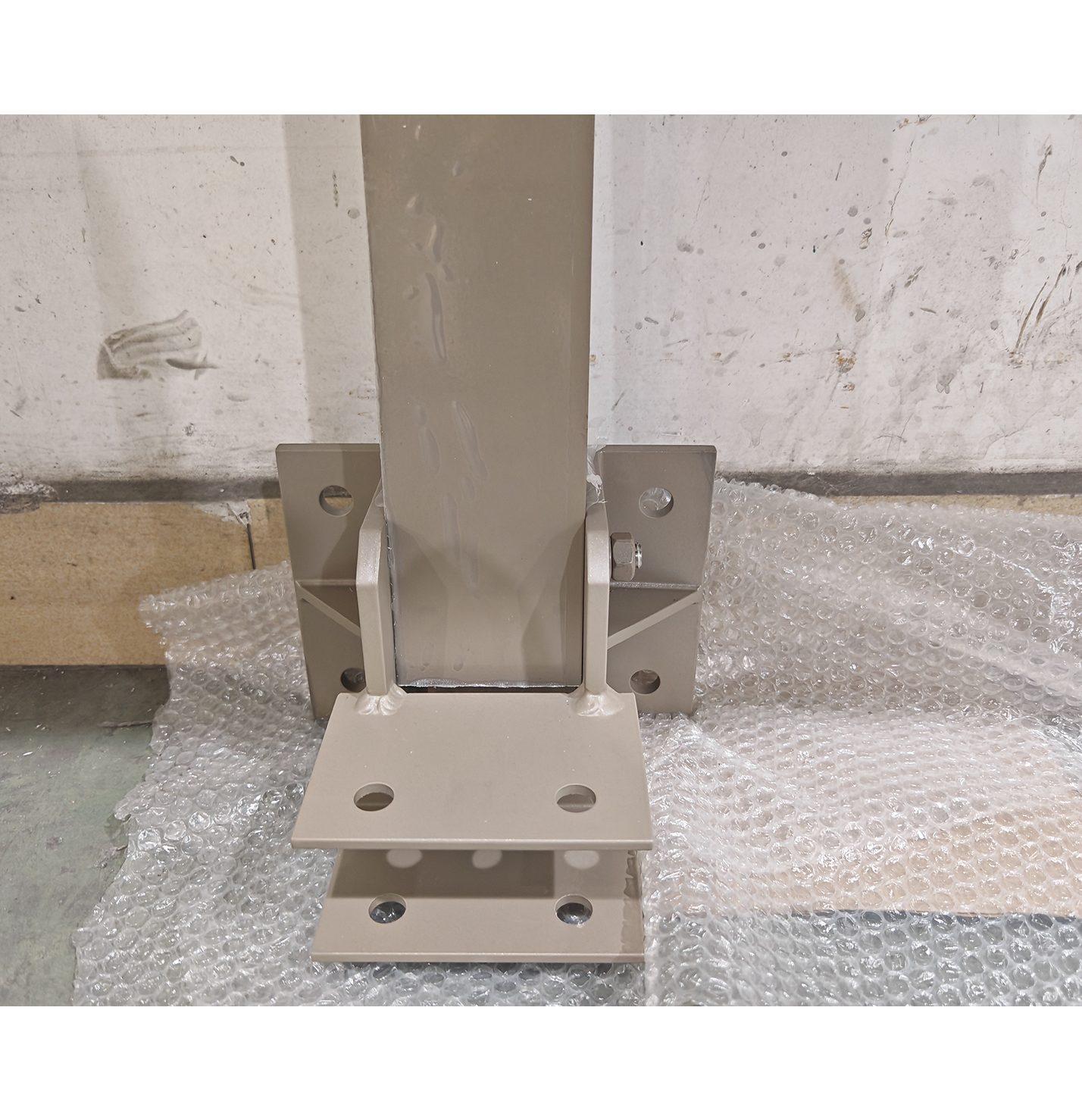

Post Base Plate & Floor Fixing
Engineered • Produced • Trial Assembled • Inspected
