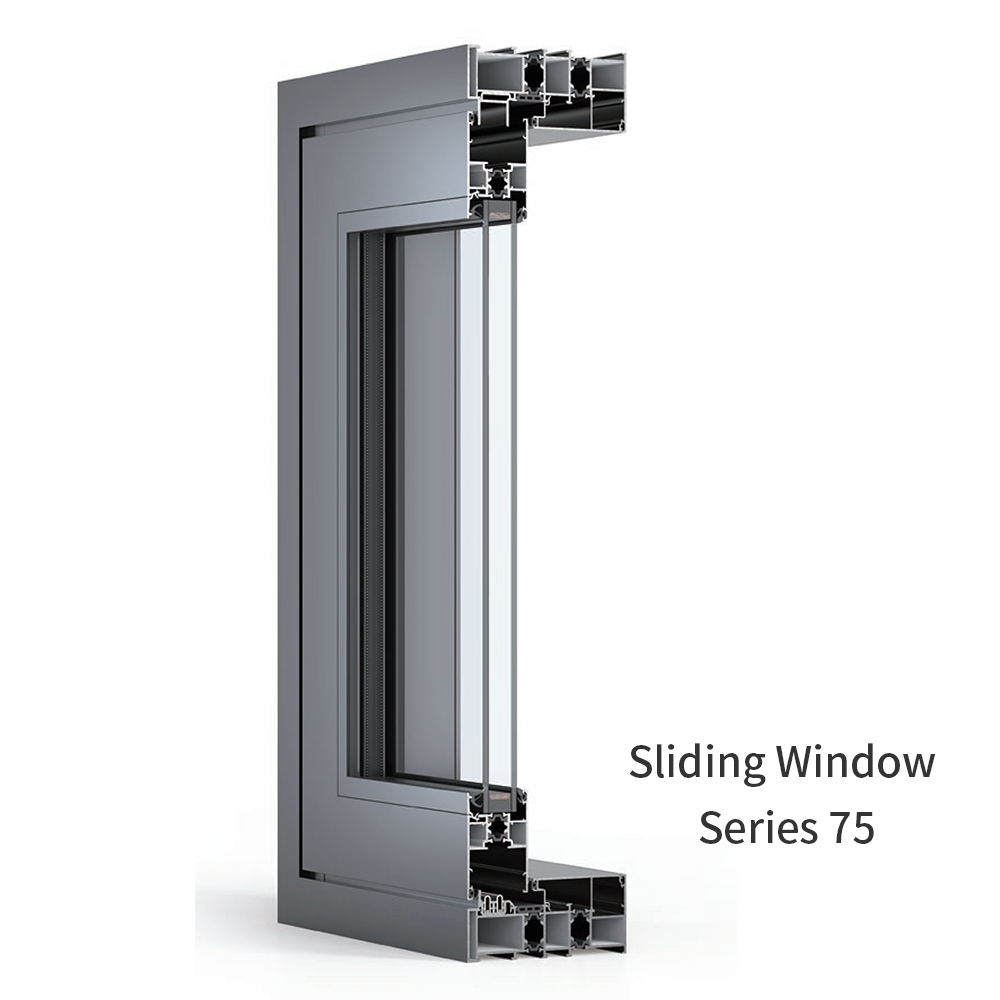

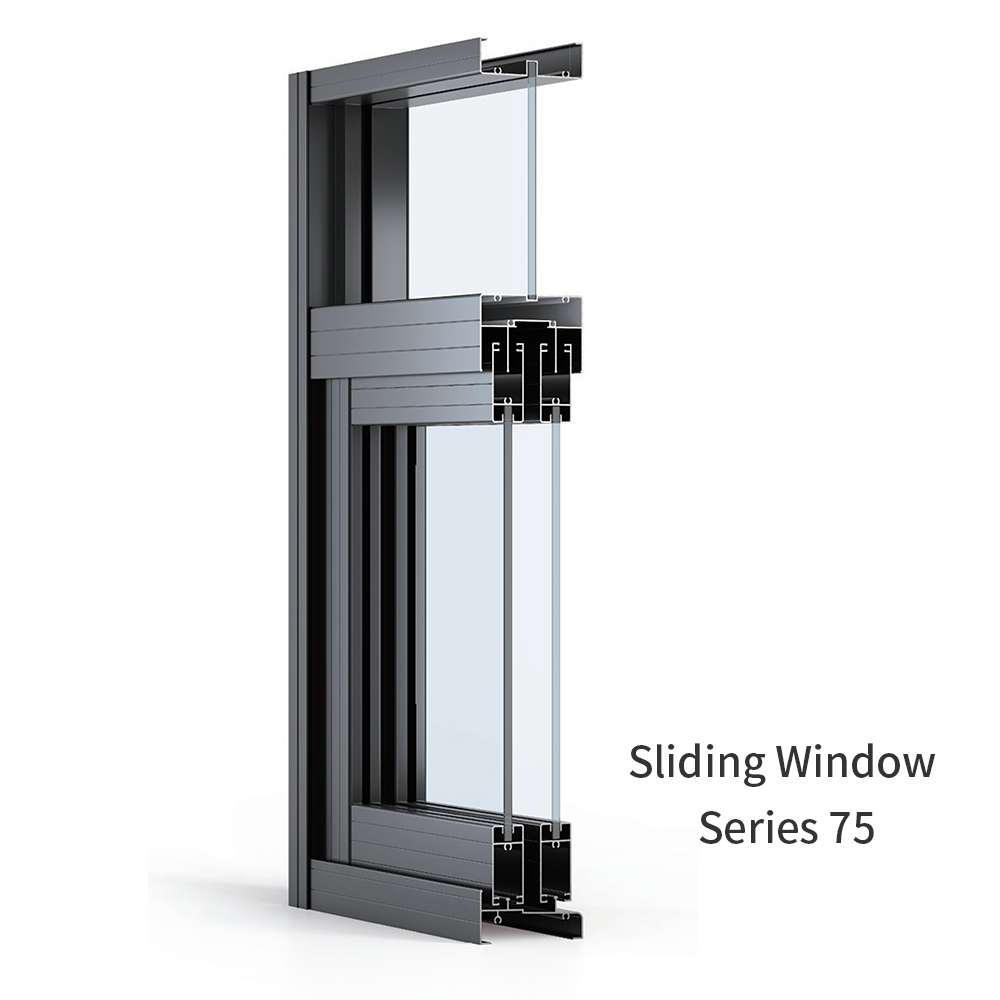

Sliding Window Series 75
Model Sliding Window Series 75
Product origin Guangdong,Foshan
The Aluminum Sliding Window System features a sleek horizontal sliding design that combines modern aesthetics with functional performance. Each sash glides smoothly along durable aluminum tracks, ensuring effortless operation and excellent ventilation. The system provides wide, unobstructed views and saves space, making it ideal for both residential and commercial applications. Various glazing and color options are available to meet different architectural styles.
- Information
- FAQ
Sliding Window Series 75
Tehnical Data
| Thickness Of Main Profile | 2.0 mm |
| Glass Thickness | 5+20A+5 mm |
| Maximum Size Of Sash | Width ≤ 1200 mm Height ≤ 2400 mm |
| Load Bearing Of Sash | ≤ 100 kg |
Performance
| Water Tightness | +400 pa |
| Wind Pressure Resistance | +2500 pa |
| Air-tightness Coefficient | Level 4 |
| Thermal Insulation | Uw2.6W/㎡K |
| Sound Insulation | Up to 30 dB |
